Lung Manifestation of Collagen Vascular Disease in HRCT

Additional Professor, Department of Radio diagnosis, PDU Medical College& Government Hospital, Rajkot, Gujarat, India
Professor and Head, Department of Radio diagnosis, PDU Medical College& Government Hospital, Rajkot, Gujarat, India
Assistant Professor, Department of Radio diagnosis, PDU Medical College & Government Hospital, Rajkot, Gujarat , India
Resident Doctor, Department of Radio diagnosis, PDU Medical College& Government Hospital, Rajkot, Gujarat, India


Background: The aim of this paper was to evaluate the thoracic manifestations associated with the Connective tissue disorders, with an emphasis on interstitial and airway disease pattern on the High Resolution computed tomography (HRCT) findings. Subjects and Methods: The present study was conducted for a period of one year. A total of 50 patients with various connective tissue disorders having respiratory complaints were evaluated. Results: During the study period 50 patients (80%females and 20%males) underwent evaluation. Cough and dyspnea were the most common presenting symptoms. Variety of thoracic abnormalities weredetected in 67 (95%) cases. Most common abnormality detected on HRCT was interstitial fibrosis/interstitial lung disease present in (60%) cases. Most common parenchymal abnormalities seen were reticulations (61.4%), ground glass opacification (40%), mosaic attenuation (32.8%) and honeycombing (24.3%). Airway abnormalities seen were bronchiectasis (48.5%), emphysema (12.8%), and ground glass nodules (2.8%). Conclusion: Interstitial lung disease is the most common pulmonary manifestation among patients with connective tissue disorders, and early detection and prompt treatment is expected to improve the outcome.


Connective Tissue Disorders, Thoracic Manifestations, Interstitial Lung Disease.


Interstitial lung disease (ILD) is a group of diffuse parenchymal lung diseases affecting the pulmonary interstitium.[1]

High resolution computed tomography is the most accurate, noninvasive, cross section imaging modality for the diagnosis and follow up monitoring of ILD.[2,3,4]

This Study was done to check the basic HRCT patterns associated with Interstitial Lung Disease and correlation of HRCT patterns with clinical data in differential diagnosis of Interstitial Lung Disease.[5,6]

Aims & Objectives

• Identify clinical manifestations of thoracic involvement in collagen vascular disease.

• Recognize interstitial lung disease patterns and other thoracic imaging features specific to collagen vascular diseases that often affect the respiratory system.

Subjects and Methods


Sample size= 50

Study design= Prospective study

Type of study= Single centre

Duration of study= 1yr (from October 2018 to September 2019)

Place of study=PDU Medical college & govt. hospital, Rajkot

Consent for participation in study= Yes

Patient Selection

Inclusion Criteria

Patients referred from medicine or skin department of our Radiology department having clinical suspicion of ILD.

Exclusion Criteria

Known cases of infective etiology (Tuberculosis, HIV), chronic obstructive pulmonary disease, congestive cardiac failure, lung malignancy, hemodynamically unstable patients.

Machine Used

  • GE 16 slice CT scanner using HRCT protocol

Consent for participation in the study will be taken from the patient.

The indication and details of the CT scan procedure explained to patient.

Written consent will be obtained either from patient or his/her relatives for CT scan

Observations will be recorded in patient proformas and analysed statistically.

Parenchymal abnormalities were categorized into four basic patterns of HRCT with their distribution and predominant involvement. Final possible diagnosis was made as per HRCT findings and clinical information.


Out of 50 patients (80% females, 20% males with a mean age of 42.6 years), 56% had respiratory symptoms. Scleroderma was the most common disease (38.6%) followed by rheumatoid arthritis (26.6%) and systemic lupus erythematosus (14.6%). Interstitial tissue involvement of the lung was the most frequent finding in patients with scleroderma, dermatomyositis, polymyositis and Sjogren's syndrome (48.3%, 57.1%, 60% and 66.7%, respectively). Pleural thickening was the most common finding in patients with rheumatoid arthritis (45%). Pleural effusion was the most frequent finding in patients with systemic lupus erythematosus (45.4%). Lymphadenopathy and bronchiectasis had the lowest prevalence (1.3%).

Table 1: Gender of patients
Disease Female Male Total
RA 13 5 18
SLE 8 1 9
Sjogren’s syndrome 2 0 2
Dermatomyositis 5 1 6
Polymyositis 2 2 4
Scleroderma 10 1 11
Total 40 10 50
Table 2: HRCT findings in each disease
HRCT findings RA SLE Sjogren’s Syndrome Dermatomyositis Polymyositis Scleroderma Total
ILD 5 2 1 3 3 6 20
Pleural fibrosis 7 0 1 2 0 3 13
Consolidation 4 2 0 1 0 2 9
Pleural effusion 0 4 0 0 0 0 4
Cardiomegaly 0 1 0 0 1 0 2
Lymphadeno- pathy 1 0 0 0 0 0 1
Bronchiectasis 1 0 0 0 0 0 1
Total 18 9 2 6 4 11 50
Figure 1: HRCT Shows bilateral diffuse extensive fibrosis with septal thickening, honeycombing, traction bronchiectasis predominantly involving bilateral lower lobs in sub pleural region and architectural distortion resulting in reduced lung volume. Findings are in favour of usual interstitial pneumonia/idiopathic pulmonary fibrosis.
Figure 2: HRCT shows bilateral diffuse Interstitial lung disease in the form of interlobular and intralobular septal thickening predominantly in sub pleural region with focal areas of tiny honeycombing with left sided pleural effusion. Findings are in favour of idiopathic interstitial pneumonia- nonspecific interstitial pneumonia.

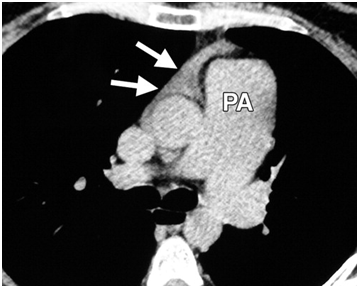

Figure 3: Pulmonary hypertension in a 27-year-old woman with progressive systemic sclerosis. Unenhanced axial CT image depicts enlargement of the pulmonary artery (PA) trunk and a substantial amount of pericardial effusion (arrows) in the anterior superior aortic recess.
Figure 4: Axial unenhanced CT image obtained in a 58-year-old man with rheumatoid arthritis shows diffuse right pleural thickening with a small amount of pleural effusion (arrows). Diffuse thickening of the pericardium is also seen. High-resolution CT images (not shown) obtained with lung window settings showed no substantial pulmonary abnormalities .


Involvement of the respiratory system is common in the collagen vascular diseases and results in significant morbidity and mortality. Lung injury from collagen vascular disease can affect each portion of the lung, commonly; more than one compartment. Although there is some overlap, each collagen vascular disease is associated with a characteristic pattern of pulmonary involvement. The lung disease in these cases may precede the clinical presentation of the collagen disease, sometimes by more than five years.

HRCT is the imaging technique of choice for evaluation of patients with connective tissue diseases, demonstrating the presence, gross characteristics and distribution of pulmonary disease with greater sensitivity than conventional chest radiographs. In certain clinical circumstances, HRCT findings can suggest a specific diagnostic process. HTCT often allows the predominant process to be identified. However, it has some limitations. In many cases, HRCT appearance is nonspecific and may or may not be related to an underlying CTD. Thus, radiologic findings should never be interpreted without knowledge of the clinical picture. The best approach to evaluate connective tissue disease is to recognize and analyze different patterns of involvement, which include pulmonary, pleural and mediastinal or hilar lymph node involvement. Interstitial lung disease (ILD) is a challenging clinical entity that can be associated with multiple CTDs. The term ILD is used to describe heterogeneous disorders of the lungs that share common radiologic, pathologic, and clinical manifestations. In addition to ILD, other forms of lung damage involving the vasculature, airways, and lymphatic tissues can complicate connective tissue disease. Linear and reticular opacities are among the most important CT findings in connective tissue disease. Reticular pattern represents thickening of the interlobular interstitium within the secondary pulmonary lobule. In end stage disease, honeycomb pattern may be seen and represents terminal lung disease. Other patterns of pulmonary involvement include nodular opacities, ground glass opacities, air space consolidation and decreased lung opacity such as in emphysema.

Rheumatoid arthritis (RA) is the most common type of CTD, affecting about 1% of people worldwide. The frequency of pulmonary abnormalities found in association with RA has been shown to vary widely. Pleural involvement, pleural fibrosis is the most common thoracic manifestation of RA. The degree of interstitial lung involvement does not necessarily correlate with the severity of articular involvement. The radiographic findings are often subtle and chest radiographs may be normal or show only honeycombing opacities =.

Systemic lupus erythematosus (SLE) is associated with pleuropulmonary disease in more than half the patients. Pleural effusion is the most common thoracic manifestation of SLE. SLE is not commonly associated with chronic diffuse ILD.

ILD is the most common complication of scleroderma, occurring in up to 55% of cases. The HRCT findings of interstitial fibrosis in scleroderma include ground glass attenuation, subpleural reticular opacities, traction bronchiectasis, architectural distortion, pleural thickening or effusion, and centrilobular micronodules in a predominantly peripheral and basilar distribution.

Pleural thickening was the most common finding in patients with RA in our study, but in Mohd Noor et al's study reticulation followed by ground glass opacities was the most common HRCT findings. In Zrour's study, interstitial involvement had the highest frequency in RA patients (28%). These differences may be due to variable ethnicity, disease activity and duration of disease in patients.

We showed that pleural effusion was the most frequent finding in patients with SLE which is in contrast to Fenlon et al's findings.[7] This may be due to the variable severity of systemic lupus erythematosus in patients. We studied patients admitted to hospital but they worked on outpatients suffering from SLE.

In our patients with scleroderma, interstitial tissue involvement was the most common finding similar to Goldin et al's study.[8] In patients with polymyositis and dermatomyositis, interstitial tissue involvement was the most common finding similar to Ikezoe et al's study.[9]

In Sjogren's syndrome, interstitial involvement was the most common finding in our study which is in accord with Koyama et al study.[10]

Our study had several limitations. We did not evaluate the duration of disease, history of smoking or disease activity or severity in our patients because of incomplete patient records.

In conclusion, the most frequent HRCT finding in patients with connective tissue disease was interstitial tissue involvement.


From this study it is evident that thoracic organs are frequent targets of immune- mediated injury in CTDs. Any thoracic compartment (parenchyma, airway, pleura and mediastinum) can be affected; however, the most important manifestation is interstitial lung disease. HRCT is the diagnostic modality for early detection which can help in prompt treatment for better prognosis.
